Briefly: Slightly-known Japanese firm referred to as Rapidus goals to mass produce 2nm chips simply two years after the likes of Samsung, TSMC, and Intel. Many within the trade think about that an not possible process, however one of many two males main the corporate believes it is only a matter of specializing in being the primary to interrupt floor on new course of expertise – type of like TSMC. Rapidus additionally has the advantage of being on the heart of Japan’s technique to overcome superior semiconductors, that means it should see loads of subsidies over the approaching years to fund its ambitions.
Again in 2021, the Japanese authorities stated it could make it a prime precedence to reboot the native semiconductor trade, which was as soon as a dominant power on the worldwide market. Regardless of internet hosting extra chip factories than an different nation, Japan has fallen behind in relation to mass-producing chips on superior course of nodes. To place issues in perspective, Japan’s share of world semiconductor gross sales has shrunk from 50 % in 1988 to about 9 % in 2022.
In the meantime, Taiwan has turn out to be the world chief on this space, principally due to TSMC. The nation at present makes greater than half of the world’s semiconductors, and that determine is over 90 % in case you take a look at chips made utilizing probably the most superior course of nodes. South Korea has a a lot smaller share of the general market, however dominates in relation to reminiscence chips, thanks in no small half to firms like Samsung and SK Hynix.
That stated, trade veteran Tetsuro Higashi says he is constructing a semiconductor firm that may meet up with the likes of TSMC and Samsung in simply 4 brief years. Regardless of being 73 years previous, Higashi is decided to indicate that Japan has what it takes to rejuvenate its chip trade and assist it regain its edge.
It began in August 2022 with the creation of Rapidus, a government-backed enterprise tasked with establishing a prototype 2nm-class course of node by the tip of 2025. These ambitions turned extra clear in December final yr, when Rapidus enlisted the assistance of IBM to spearhead analysis and growth efforts. The US-based tech big has intensive semiconductor IP and was the primary firm to unveil a 2nm chip design again in 2021.
Rapidus is led by two trade veterans – Tetsuro Higashi (who beforehand presided over Tokyo Electron) and Atsuyoshi Koike (who beforehand presided over Western Digital’s Japanese arm). Additionally it is backed by a a number of expertise and monetary corporations corresponding to Kioxia (previously Toshiba Reminiscence Corp.), Sony, Toyota Motor, Denso, NEC, NTT, Softbank, and Mitsubishi UFJ Financial institution.
Extra importantly, the corporate receives substantial subsidies from the Japanese authorities. And its partnership with an American agency represents a big departure from Japan’s earlier angle in direction of working with worldwide organizations in relation to nationwide efforts. The result’s that Rapidus engineers are studying the 2nm course of at IBM’s analysis heart in Albany, New York, and the US beneficial properties a strategic associate in semiconductor manufacturing.
Higashi says that Rapidus is planning to have a cutting-edge manufacturing facility absolutely operational by 2027. This can be a large enterprise that can value an estimated seven trillion yen (round $52 billion), most of which can come via authorities subsidies. As for the placement, we solely know the corporate has its eyes set on Chitose, a metropolis situated 36 kilometers away from Sapporo, the capital metropolis of the Hokkaido prefecture.

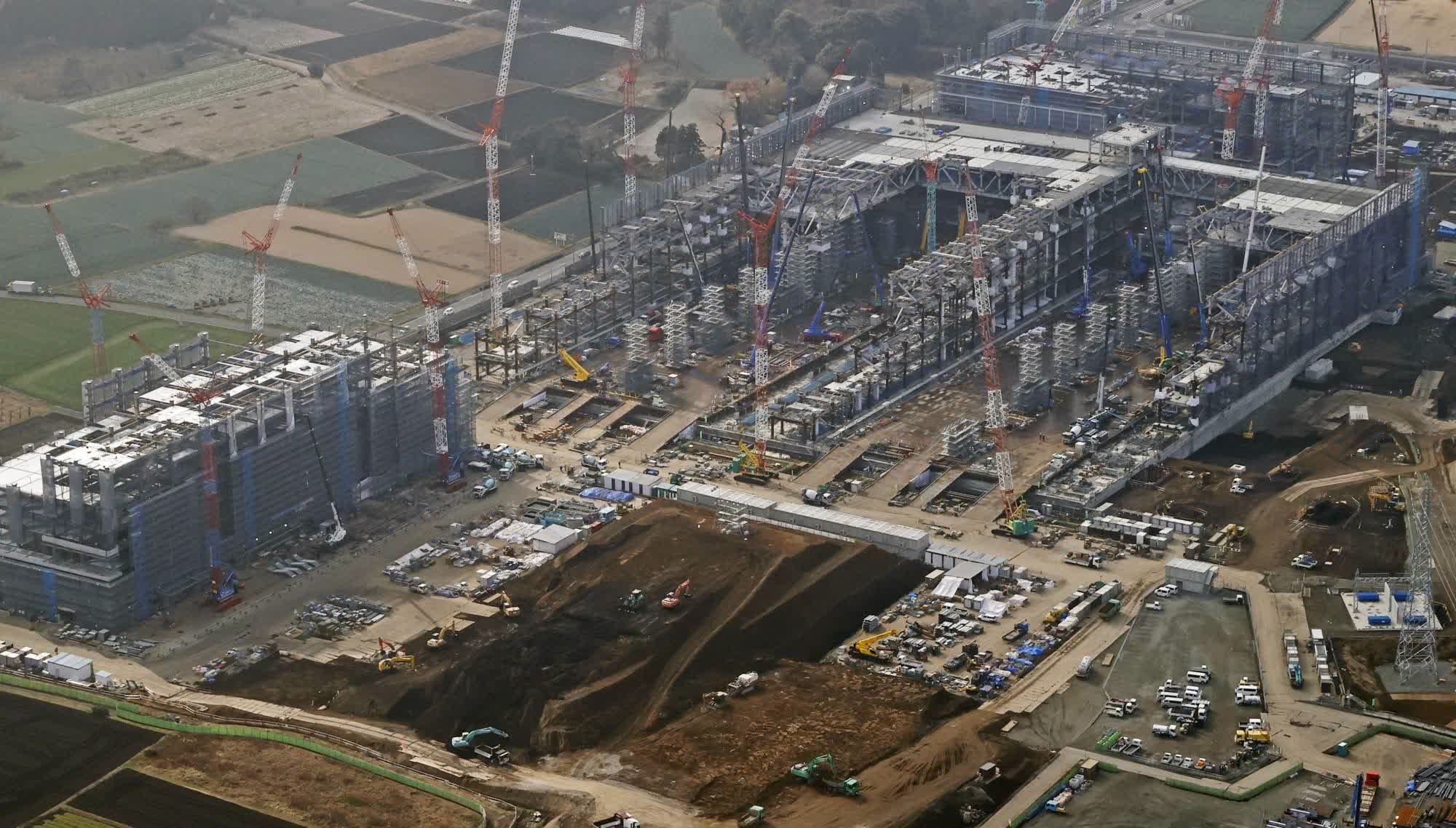

TSMC’s manufacturing unit within the Kumamoto prefecture | Kyodo
Selecting the best location for a chip manufacturing unit is a troublesome process. Chitose has an ample water provide and depends on renewable sources for its vitality wants, which make it a superb candidate. Nonetheless, a lot of the related suppliers are clustered within the Kumamoto prefecture, so Rapidus might want to encourage them to have a presence in Hokkaido as properly. Notably, that is the place TSMC is constructing a chip plant as a part of a three way partnership with Sony.
Additionally learn: Aiming for Atoms: The Artwork of Making Chips Smaller
Maybe the largest problem for Rapidus will likely be to amass all the mandatory EUV lithography tools from ASML. Intel, Samsung, and TSMC are additionally seeking to safe EUV machines for his or her enlargement plans, which is why lead occasions are actually round two years. Fortunately for Rapidus, US sanctions in opposition to Chinese language semiconductor corporations have blocked some orders, which can assist cut back ready occasions for everybody else.
In contrast to different low-profile chipmakers, Rapidus is not involved in making chips utilizing older, extra mature course of nodes. Moreover, Higashi explains the corporate will not be capable of compete with the likes of TSMC and Samsung in relation to manufacturing quantity, so it should as an alternative focus solely on beating them within the transistor miniaturization race.
Constructing a number one semiconductor firm from scratch is a daring guess, however now that Moore’s Legislation has slowed down, it might truly be simpler to meet up with current chipmakers. We’ll have to attend and see, as firms like TSMC, Samsung, and Intel have deep pockets and are simply as decided to take chip manufacturing to the following stage since their future is dependent upon it.
